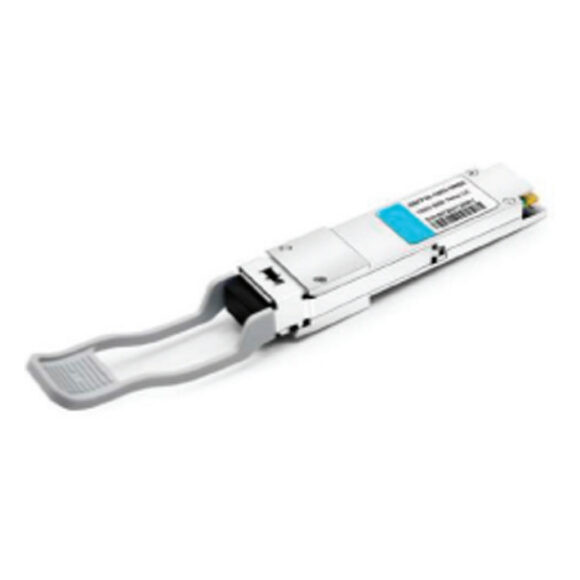

A four-channel, small form pluggable, multimode, fibre optic QSFP28 transceiver for 100-Gigabit Ethernet applications. This transceiver is a high-performance module for short-range data communication and interconnect applications.
KEY FEATURES
• Compliant to 100GbE electrical specification 802.3bm (Annex 83E CAUI-4) with No Host FEC
• 100G link distances up to 70m OM3, 100m OM4 per TIA informative guidance proposal V2, and 150m OM5
per TIA-492AAAE specification
• 40G link distances up to 75m OM3, 110m OM4 per TIA informative guidance proposal V2, and 160m OM5
per TIA-492AAAE specification
• QSFP28 MSA specification-compliant, including new functions per SFF-8636
• Class 1 eye safety
• Pull tab: ease of transceiver insertion and extraction
• +10°C to +70°C case temperature operating range
• Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
• Proven high reliability 850-nm and 900-nm technology: VCSEL transmitter and PIN detector
• Hot pluggable QSFP28 transceiver for ease of installation and servicing
• Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded function
• Cisco Compatible
APPLICATIONS
• Data Centre &
Enterprise networking
• 100 Gigabit Ethernet
interconnects
• Datacom/Telecom switch
& router connections
• Data aggregation &
backplane applications
• Proprietary protocol &
density applications
