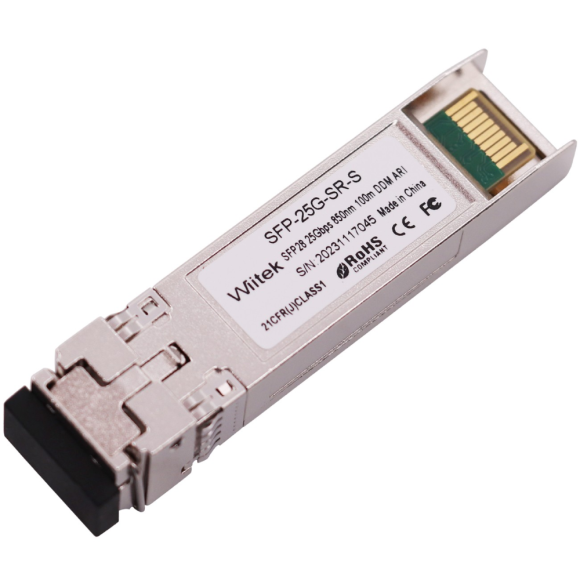

Designed for 24.33Gbps and 25.78Gbps data rate over MMF and support up to 100m link length on OM4 and 70m link length on OM3. It is compliant to IEEE802.3by, SFF-8402, SFF-8432. Digital diagnostic monitoring interface compliant to SFF-8472 is available via an I2C interface.
KEY FEATURES
• Compatible with CPRI option10 24.33Gbps
and 25GBASE 25.78Gbps
• 100m transmission over OM4 MMF
• 70m transmission over OM3 MMF
• 850nm VCSEL laser transmitter
• 80nm high sensitivity PIN-TIA receiver
• SFP28 MSA compliant
• Built-in digital diagnostic functions
• Single +3.3V power supply
• Operating case temperature: -40 to +85 °C or 0 to +70 °C
• RoHS 6 Compliant
APPLICATIONS
• 25GBASE-SR
• 24.33Gbps CPRI
