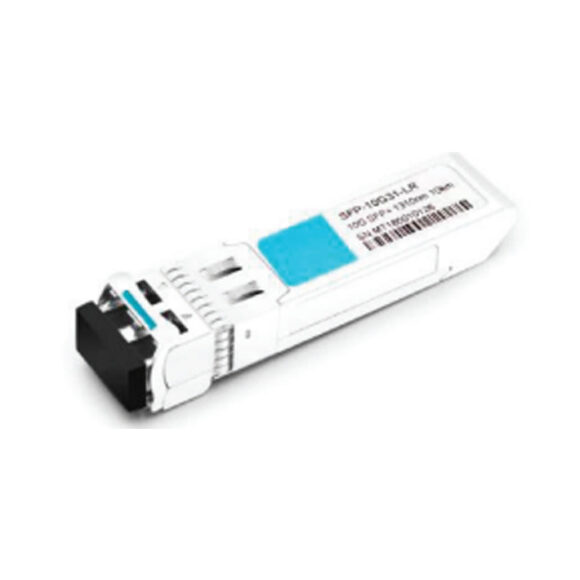

SFP+ transceivers are high-performance, cost-effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF. This transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. This product satisfies class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
KEY FEATURES
• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1310nm DFB laser and PIN photodiode, up to 10km for
SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
APPLICATIONS
• 10Gbps Optical systems
• 10GBASE-LR at
10.3125Gbps
• 10GBASE-LW at 9.953Gbps
LTE systems
• Other Optical links
