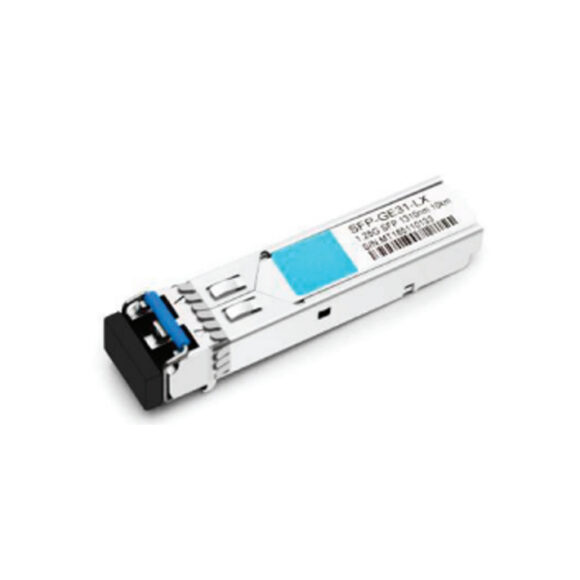

This SFP transceiver is a high-performance, cost-effective module supporting data rate of 1.25Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. Compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
KEY FEATURES
• Supports up to 1.25Gbps bit rates
• Hot-pluggable SFP footprint
• 1310nm FP laser and PIN photo detector, Up to 10km for
SMF transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
APPLICATIONS
• 1.25Gbps Optical systems
• Gigabit Ethernet
• 1.063Gbps Fiber Channel
• Other Optical links
