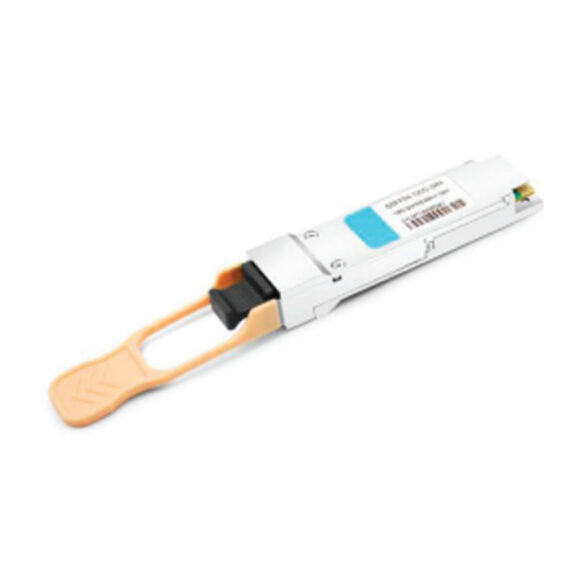

This 100G QSFP28 MPO transceiver module is designed for use in 100 Gigabit Ethernet links over multimode fibre. It is compliant with the IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface as specified by the QSFP28 MSA.
KEY FEATURES
• Hot-pluggable QSFP28 form factor
• Supports 103.1Gb/s aggregate bit rates
• Power dissipation < 3.5W
• RoHS-6 compliant
• Commercial case temperature range of 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 100m on OM4 Multimode Fibre (MMF)
• 4x25Gb/s 850nm VCSEL-based transmitter
• 4x25G electrical interface
• Single MPO12 receptacle
• I2C management interface
• Cisco Compatible
APPLICATIONS
• Data Centre and Enterprise
networking
• 100 Gigabit Ethernet
interconnects
• Datacom/Telecom switch &
router connections
• Data aggregation and
backplane applications
• InfiniBand QDR and DDR
interconnects
