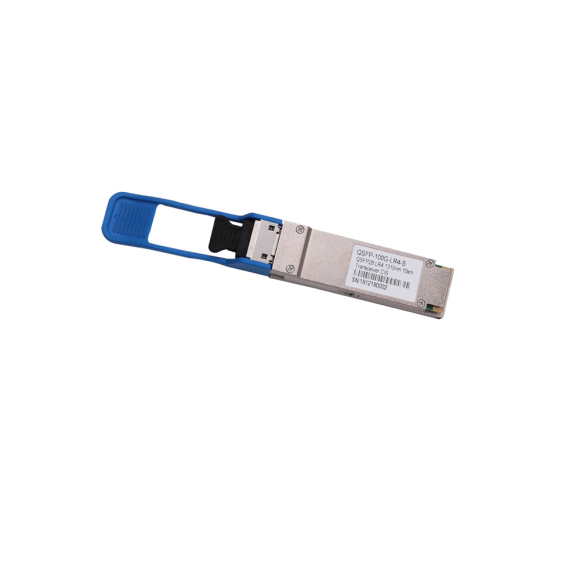

This is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. It converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN-WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. On the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data.
KEY FEATURES
• 4 channels full-duplex transceiver modules
• Transmission data rate up to 25.78Gbps per channel
• 4 channels DFB-based LAN-WDM cooling transmitter
• 4 channels PIN ROSA
• Internal CDR circuits on both receiver and transmitter channels
• Low power consumption < 3.5W
• Hot-pluggable QSFP28 form-factor
• Up to reach 10km for G.652 SMF
• Duplex LC receptacles
• 3.3V power supply voltage
• RoHS-6 compliant (lead free)
APPLICATIONS
• IEEE 802.3ba
100GBASE-LR4
