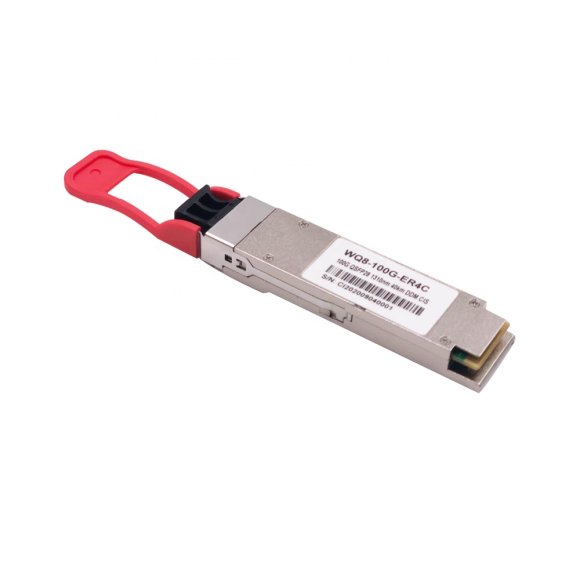

This QSFP28 transceiver module is designed for use in 100 Gigabit Ethernet links over single mode fibre. It is compliant with SFF-8665, INF-8438i, IEEE802.3bm,100G 4WDM-40 MSA. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
KEY FEATURES
• Up to 30km reach for G.652 SMF without FEC
• Up to 40km reach for G.652 SMF with FEC
• Cooled 4x25Gb/s LAN WDM EML TOSA with optical MUX
• 4 x 25G Electrical Interface
• Single +3.3V power supply
• DDM function implemented
• 2 Wire Serial Interface for module management
• Maximum power dissipation<5W
• Operating temperature range: 0℃ ~ 70℃
• Compliant with RoHS6
APPLICATIONS
• Compliant with QSFP28
Standard: SFF-8665,
SFF-8636
• Compliant with 100G
4WDM-40 MSA technical
specification rev 1.0
• High speed I/O electrical
interface (CAUI-4) compliant
with IEEE 802.3bm
