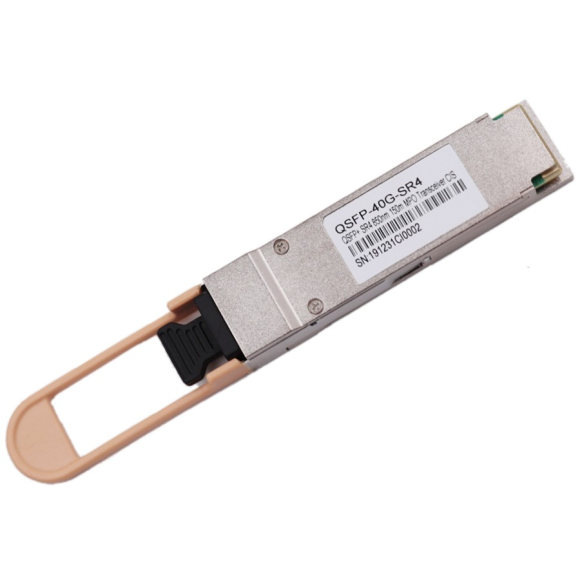

Four-Channel, Pluggable, Parallel, Fibre-Optic QSFP+ Transceiver for 40 Gigabit Ethernet This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications.
KEY FEATURES
• 4 channels full-duplex transceiver modules
• Transmission data rate up to 10.5Gbps per channel
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Low power consumption <1.5W
• Hot Pluggable QSFP form factor
• Maximum link length of 100m on OM3 Multimode Fibre (MMF)
and 150m on OM4 MMF
• Single MPO connector receptacle
• Built-in digital diagnostic functions
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant (lead free)
APPLICATIONS
• 40GBASE-SR4 40G Ethernet
• Datacom/Telecom switch
& router connections
• Data Aggregation and
Backplane Applications
• Proprietary Protocol and
Density Applications
• InfiniBand transmission at
4ch SDR, DDR and QDR
